Scissor Lift

SKE Series

Scissor Lift -12m, 14m, and 16m

The electric scissor lift from SKYMECH is available in three different working height platform - 12 meters, 14 meters and 16 meters.Our Scissor Lifts are exceptionally low-noise and mobile, letting operators easily manage around narrow spaces - be it interior or exterior worksites.The Scissor Lift is designed to deliver higher confidence, increased productivity and enhanced safety on the job.

The key features of the electric scissor lift are:

Smooth Operation

Quick Ascent and Descent

Low Operational Costs

Durable and Reliable

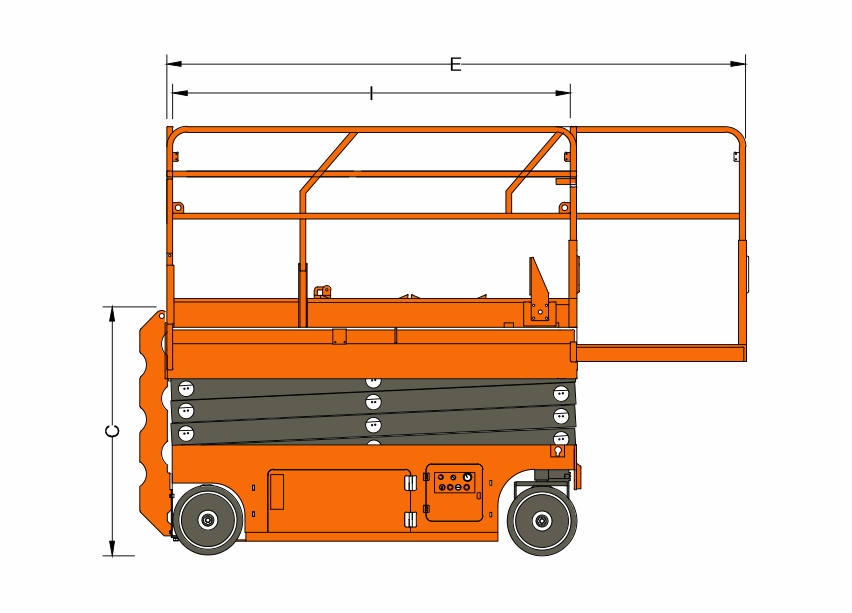

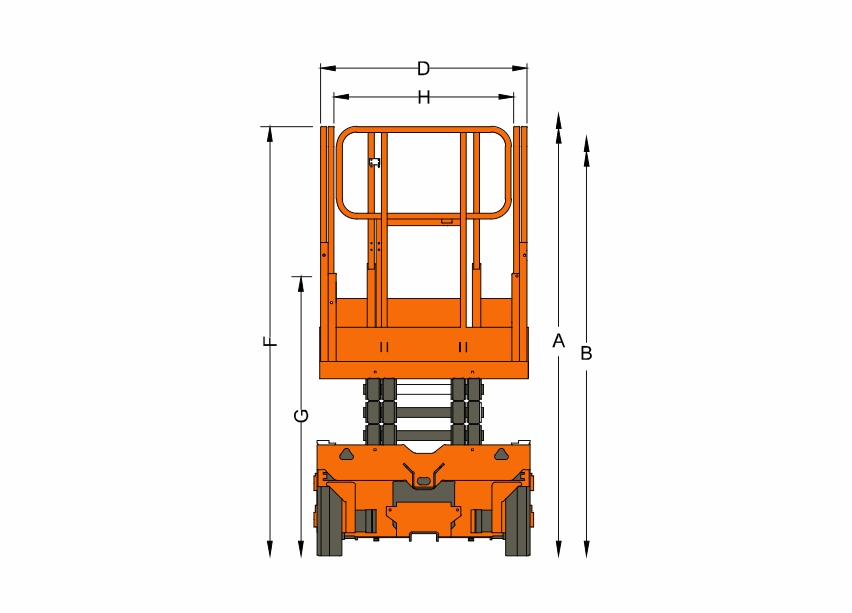

DIMENSIONS	SE 12	SE 14	SE 16

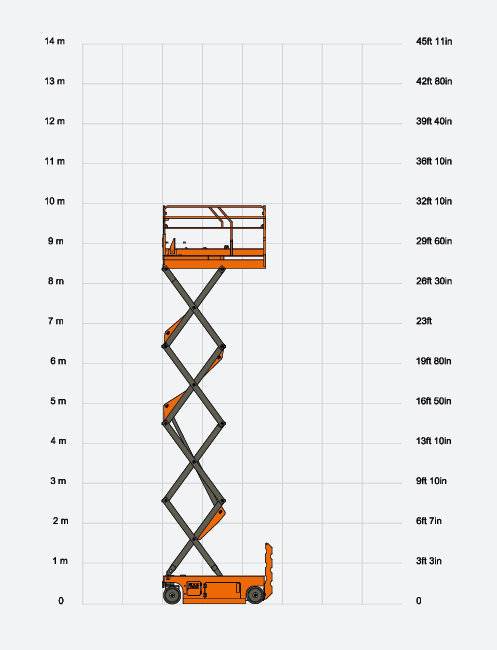

Max. Working Height (a)	10.15 M	11.75 M	13.75 M
Max Platform Height (b)	8.75 M	9.75 M	11.75 M
Lowered Platform Height (c)	1.27 M	1.27 M	1.4 M
Overall Width Stowed (d)	1.14 M	1.14 M	1.14 M
Platform Inside Length (Extension) (e)	3.19 M	3.19 M	3.19 M
Stowed Height (Guide Rail Up) (f)	1.47 M	2.1 M	2.73 M
Stowed Height (Guide Rail Down) (g)	1.64 M	1.77 M	1.90 M
Platform Width (Inside Rails) (h)	1.05 M	1.05 M	1.05 M
Platform Inside Length (Retraction) (i)	2.18 M	2.18 M	2.18 M

KEY SPECIFICATIONS	SE 12	SE 14	SE 16
Platform Extension	0.95 M	0.95 M	0.95 M
Ground Clearance (Pothole Device On)	12 MM	12 MM	12 MM
Ground Clearance (Pothole Device Off)	82 MM	82 MM	82 MM
Wheelbase	1.84 M	1.84 M	1.84 M
Gradeability	23% (14˚)	23% (14˚)	23% (14˚)
Drive Speed (Raised)	0.2 Km/h	0.2 Km/h	0.8 Km/h
Drive Speed (Stowed)	2.9 Km/h	3.5 Km/h	3.2 Km/h
Main Platform Load Capacity	350 Kg	350 Kg	350 Kg
Platform Capacity Extended	125 Kg	125 Kg	125 Kg
Non Marking Solid Tyre Size	Ø375 X 126	Ø375 X 126	Ø375 X 126
Battery Type Lithium Ion	24v 172ah	24v 172ah	24v 172ah
Drive	Front 2 Wheel	Front 2 Wheel	Front 2 Wheel
Brake	Rear 2 Wheel	Rear 2 Wheel	Rear 2 Wheel
Steering	Front 2 Wheel	Front 2 Wheel	Front 2 Wheel
Over All Weight	2330 Kg	2470 Kg	3380 Kg
Maximum Number of Person	3	3	3
Hydraulic Capacity	25 L	25 L	25 L
