Attachments for Cranes & Excavators
SKYMECH Equipments has reseller partnership with I.C.M. S.r.l of Itaty to provide attachments for cranes and excavators that can be custom-fitted with SKYMECH’s SKB series of Knuckle Boom Cranes. and other companies’ excavators These attachments are available through specialized fitting services provided by SKYMECH Equipments.
CLAMSHELL BUCKETS – CLA-L · CLA-MR
The CLA-L and CLA-MR series of clamshell buckets are designed for efficient handling of sand and loose materials, delivering precision, durability, and smooth operation for a wide range of applications. Engineered for use with excavators and truck cranes, these buckets combine high-strength materials with reliable hydraulic performance to ensure long-lasting productivity.
Key Features
- Two Configurations:
- CLA-L with closed side walls for fine or contained materials
- CLA-MR with open side walls for larger or free-flowing materials
- Lock Valve System: Keeps the bucket securely closed even in case of hose failure
- Reinforced Blades: High-quality wear-resistant steel blades and counter-blades for extended durability
- Compact Design: Lightweight yet robust for maximum load handling and smooth digging performance
Technical Highlights
- Compatible with excavators from 1 to 5.5 tons
- Capacity range: 120–400 liters
- Clamping force: Up to 2740 daN
- Operating pressure: 250 bar
- Weight: 136–280 kg depending on model
Optional Equipment
- Recommended hydraulic rotators: GR 30 PF, GR 30 F, GR 465
- Double swinging link
- Bolt-on side walls (for CLA-MR)
- Welded teeth or bolted hook options
Applications
Perfect for construction, material loading, trench work, and general excavation, the CLA-L and CLA-MR clamshell buckets offer strong grip, precise control, and dependable operation—making them a solid, all-purpose solution for modern job sites.
CLAMSHELL BUCKETS – CLA-S & SR
The CLA-S and CLA-SR series of clamshell buckets are designed for handling loose material, mud, rubble, and digging applications, combining strength, durability, and precision. Built for use with excavators and truck cranes, these buckets deliver exceptional reliability even in the toughest working environments.
Key Features
- Two Configurations:
- CLA-S with closed side walls for fine materials and containment
- CLA-SR with open side walls for larger debris and improved discharge
- Lock Valve System: Ensures the bucket remains securely closed even if a hose breaks
- Reinforced Build: Blades and counter-blades made of high-quality, wear-resistant steel
- Optional Bolt-On Features: Side walls (CLA-SR only), teeth, and hooks for added versatility
Technical Highlights
- Compatible with excavators from 4–16 tons
- Capacity range: 300–900 liters (max load 2.7–3.0 t)
- Clamping force: Up to 4500 daN
- Operating pressure: 250 bar
- Weight: 356–490 kg depending on model
Optional Equipment
- Hydraulic rotator (models GR 465, GR 603 DB, GR 104 DB, GR 165)
- Double swinging link
- Bolt-on side walls, teeth, and lifting hook
Applications
Ideal for construction, earthmoving, and material handling, the CLA-S and CLA-SR series offer reliable performance, easy maintenance, and maximum strength for operators who demand efficiency and safety on every lift.

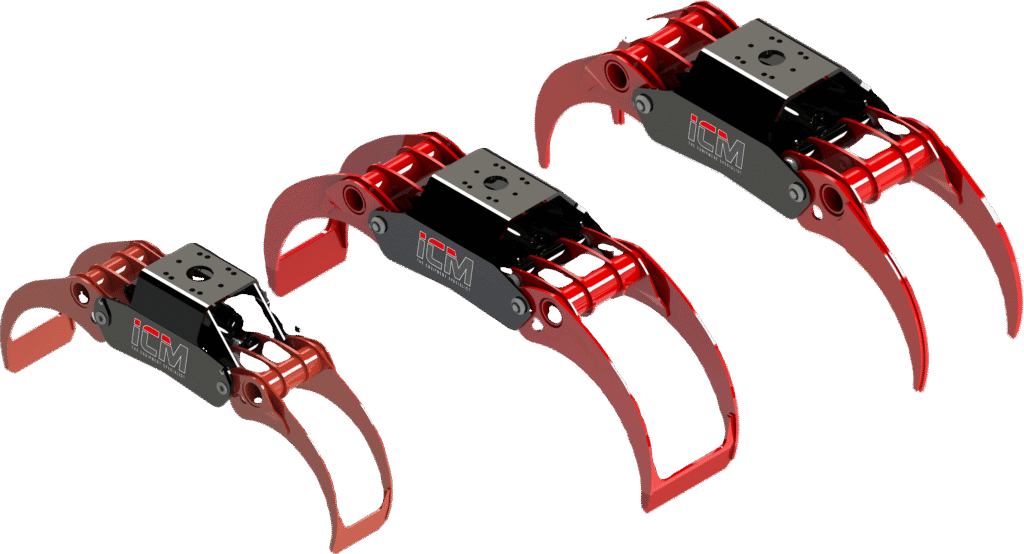

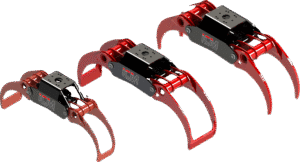

LOG GRABS – BASIC & GRA SERIES
Purpose-built for handling wood and timber, the BASIC · GRA family combines low weight with high durability for fast, secure loading. With long-lasting bronze bushings and high-elastic-limit blades in Strenx® 700, these grabs keep weight down without sacrificing strength. Compatible with excavators and truck cranes.
Series at a glance
- BASIC – occasional-use grab with a simple, ultra-light design
- GRA-L – lightweight series for maximum agility
- GRA-M – professional closed-finger series for firm holds
- GRA-R – professional open-finger series for quick picking
Key highlights
- Max load range: 1,000–7,000 kg
- Clamping force: 900–2,405 daN
- Operating pressure: 150–250 bar
- Weight: 72–370 kg depending on model
- Working area: 0.16–0.52 m²
- Finger options: open or closed, sized for 1–18-ton carriers
- Design: bronze bushings + Strenx 700 blades for strength with minimal weight
- Options & accessories
- Hydraulic rotator and double swinging link
- Recommended hydraulic rotators: GR 30, GR 30 PF, GR 456, GR 465, GR 603 DB, GR 104 DB, GR 165
The BASIC GRA series delivers reliable, low-maintenance timber handling—ideal for forestry yards, sawmills, and on-site loading where speed, reach, and control matter.
The CLA-L and CLA-MR series of clamshell buckets are designed for efficient handling of sand and loose materials, delivering precision, durability, and smooth operation for a wide range of applications. Engineered for use with excavators and truck cranes, these buckets combine high-strength materials with reliable hydraulic performance to ensure long-lasting productivity.
Key Features
- Two Configurations:
- CLA-L with closed side walls for fine or contained materials
- CLA-MR with open side walls for larger or free-flowing materials
- Lock Valve System: Keeps the bucket securely closed even in case of hose failure
- Reinforced Blades: High-quality wear-resistant steel blades and counter-blades for extended durability
- Compact Design: Lightweight yet robust for maximum load handling and smooth digging performance
Technical Highlights
- Compatible with excavators from 1 to 5.5 tons
- Capacity range: 120–400 liters
- Clamping force: Up to 2740 daN
- Operating pressure: 250 bar
- Weight: 136–280 kg depending on model
Optional Equipment
- Recommended hydraulic rotators: GR 30 PF, GR 30 F, GR 465
- Double swinging link
- Bolt-on side walls (for CLA-MR)
- Welded teeth or bolted hook options
Applications
Perfect for construction, material loading, trench work, and general excavation, the CLA-L and CLA-MR clamshell buckets offer strong grip, precise control, and dependable operation—making them a solid, all-purpose solution for modern job sites.
The CLA-S and CLA-SR series of clamshell buckets are designed for handling loose material, mud, rubble, and digging applications, combining strength, durability, and precision. Built for use with excavators and truck cranes, these buckets deliver exceptional reliability even in the toughest working environments.
Key Features
- Two Configurations:
- CLA-S with closed side walls for fine materials and containment
- CLA-SR with open side walls for larger debris and improved discharge
- Lock Valve System: Ensures the bucket remains securely closed even if a hose breaks
- Reinforced Build: Blades and counter-blades made of high-quality, wear-resistant steel
- Optional Bolt-On Features: Side walls (CLA-SR only), teeth, and hooks for added versatility
Technical Highlights
- Compatible with excavators from 4–16 tons
- Capacity range: 300–900 liters (max load 2.7–3.0 t)
- Clamping force: Up to 4500 daN
- Operating pressure: 250 bar
- Weight: 356–490 kg depending on model
Optional Equipment
- Hydraulic rotator (models GR 465, GR 603 DB, GR 104 DB, GR 165)
- Double swinging link
- Bolt-on side walls, teeth, and lifting hook
Applications
Ideal for construction, earthmoving, and material handling, the CLA-S and CLA-SR series offer reliable performance, easy maintenance, and maximum strength for operators who demand efficiency and safety on every lift.
Purpose-built for handling wood and timber, the BASIC · GRA family combines low weight with high durability for fast, secure loading. With long-lasting bronze bushings and high-elastic-limit blades in Strenx® 700, these grabs keep weight down without sacrificing strength. Compatible with excavators and truck cranes.
Series at a glance
- BASIC – occasional-use grab with a simple, ultra-light design
- GRA-L – lightweight series for maximum agility
- GRA-M – professional closed-finger series for firm holds
- GRA-R – professional open-finger series for quick picking
Key highlights
- Max load range: 1,000–7,000 kg
- Clamping force: 900–2,405 daN
- Operating pressure: 150–250 bar
- Weight: 72–370 kg depending on model
- Working area: 0.16–0.52 m²
- Finger options: open or closed, sized for 1–18-ton carriers
- Design: bronze bushings + Strenx 700 blades for strength with minimal weight
- Options & accessories
- Hydraulic rotator and double swinging link
- Recommended hydraulic rotators: GR 30, GR 30 PF, GR 456, GR 465, GR 603 DB, GR 104 DB, GR 165
The BASIC GRA series delivers reliable, low-maintenance timber handling—ideal for forestry yards, sawmills, and on-site loading where speed, reach, and control matter.
About I.C.M – The Equipment Specialist – Since 4 February 1984, I.C.M. has been operating in the hydraulics sector with great passion and focused towards innovation. Based in Ravenna, Italy, it manufactures equipment for cranes and earth-moving machinery in-house, starting with carpentry, then welding, painting, and finally the assembly of the finished machines.
