Attachments for Cranes
SKYMECH Equipments has reseller partnership with I.C.M. S.r.l of Itaty to provide attachments (designed & manufactured in Italy) for cranes that can be custom-fitted with SKYMECH’s SKB series of Knuckle Boom Cranes. These attachments are available through specialized fitting services provided by SKYMECH Equipments.
POLYP GRABS PLY Z
Engineered for material handling, scrap metal, and recycling, the PLY-Z polyp grab delivers fast, secure loading with a six-finger profile optimized for high-grip performance. Built to mount on Z-folding truck cranes and loaders, it combines rugged construction with smooth hydraulics for reliable daily use.
Key highlights
- Capacities: 270–320 L (max load upto 2.5–3.0t)
- Clamping force: 1185–1620 daN for strong, consistent grabbing
- Hydraulics: 250–300 bar operating pressure
- Weight: 380–420 kg, balanced for stability and cycle speed
- Design: Six-finger geometry for clean penetration and retention; compact body for tight spaces
- Compatibility: Ideal for Z-folding cranes; quick integration with standard mounts
- Options: Hydraulic rotator + machine attachment; recommended rotators GR 603 DB / GR 104 DB
The PLY-Z is a durable, low-maintenance solution that boosts productivity in sorting yards, transfer stations, and demolition clean-ups.

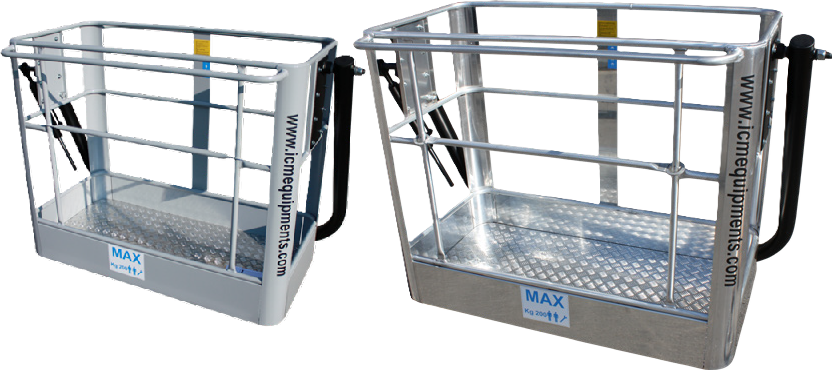

TWO-PERSON BASKETS
Two-person work platforms—built for safety, strength, and efficiency. With a 200 kg maximum load capacity, these platforms are engineered to support two operators while maintaining a compact footprint of 1350 × 650 × 1143.50 mm.
CB BT2 — Steel Strength for Heavy Duty – Durable steel construction with a weight of 112 kg, designed for robust performance in demanding conditions
CB BA2 — Aluminium Advantage – Lightweight at only 87 kg, making it easier to transport and handle without compromising safety or capacity.
Choose steel for rugged durability or aluminium for maximum maneuverability—both deliver reliability and safety for industrial and construction applications.
LOG GRABS – BASIC & GRA SERIES
Purpose-built for handling wood and timber, the BASIC · GRA family combines low weight with high durability for fast, secure loading. With long-lasting bronze bushings and high-elastic-limit blades in Strenx® 700, these grabs keep weight down without sacrificing strength. Compatible with excavators and truck cranes.
Series at a glance
- BASIC – occasional-use grab with a simple, ultra-light design
- GRA-L – lightweight series for maximum agility
- GRA-M – professional closed-finger series for firm holds
- GRA-R – professional open-finger series for quick picking
Key highlights
- Max load range: 1,000–7,000 kg
- Clamping force: 900–2,405 daN
- Operating pressure: 150–250 bar
- Weight: 72–370 kg depending on model
- Working area: 0.16–0.52 m²
- Finger options: open or closed, sized for 1–18-ton carriers
- Design: bronze bushings + Strenx 700 blades for strength with minimal weight
- Options & accessories
- Hydraulic rotator and double swinging link
- Recommended hydraulic rotators: GR 30, GR 30 PF, GR 456, GR 465, GR 603 DB, GR 104 DB, GR 165
The BASIC · GRA series delivers reliable, low-maintenance timber handling—ideal for forestry yards, sawmills, and on-site loading where speed, reach, and control matter.

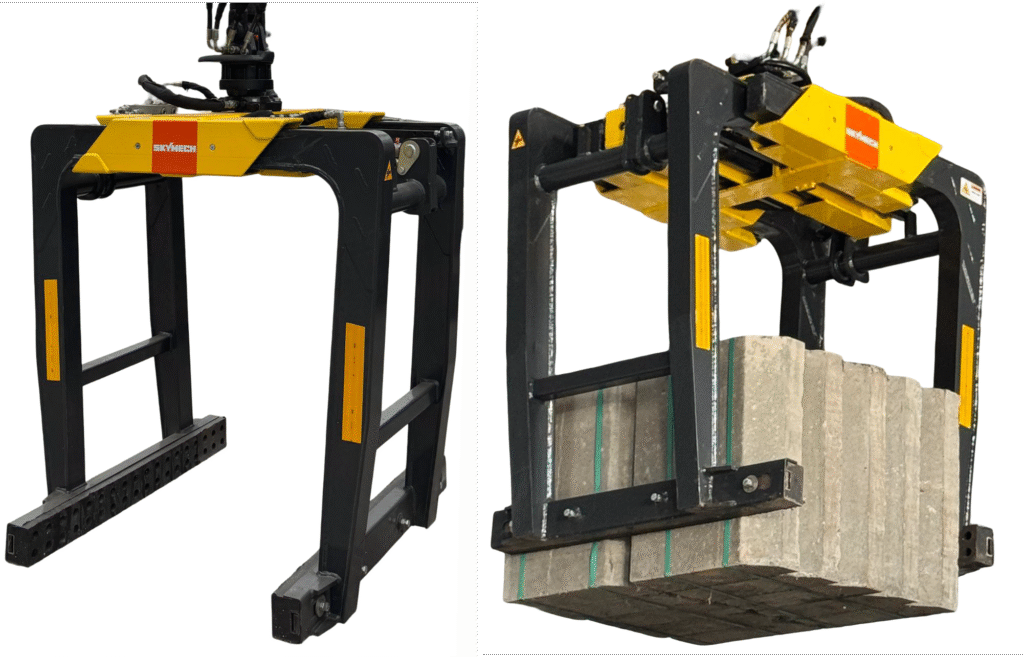

The SKYMECH Hydraulic Brick Grabber (Model SBG-H30) is a powerful and versatile attachment engineered for handling palletized and non-palletized construction materials with precision and safety. Designed specifically for truck-mounted knuckle boom cranes, it ensures efficient loading and unloading in demanding site conditions.
Key Features
- Hydraulic Clamping Arms: Parallel-opening and closing arms with rigid or adjustable plunge depth for smooth, balanced gripping.
- Safety Assured: Equipped with internal load-holding and non-return valves to maintain secure clamping even in case of pressure loss.
- High-Quality Construction: Built from premium-grade steel for maximum durability and long service life.
- Smooth Operation: Dual double-acting cylinders with rack-and-pinion synchronisation for precise, vibration-free motion.
- User-Friendly Design: Fitted with durable, replaceable rubber grips for reliable contact and minimal material damage.
- Continuous Rotation: Offers unlimited 360° rotation for flexible material handling.
- Performance Specs:
- Lifting capacity: 2000 kg
- Operating pressure: 180 bar
- Opening range: 320 – 1420 mm
- Inner height: 1200 mm
- Gripper length: 1000 mm
- Bare weight: 390 kg
Applications
Ideal for brick packs, concrete blocks, pavers, and modular materials, the SBG-H30 enhances productivity across construction, logistics, and building material yards—delivering the reliability, precision, and engineering quality that define SKYMECH products.

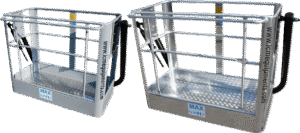

Two-person work platforms—built for safety, strength, and efficiency. With a 200 kg maximum load capacity, these platforms are engineered to support two operators while maintaining a compact footprint of 1350 × 650 × 1143.50 mm.
CB BT2 —
Steel Strength for Heavy Duty – Durable steel construction with a weight of 112 kg, designed for robust performance in demanding conditions
CB BA2 —
Aluminium Advantage – Lightweight at only 87 kg, making it easier to transport and handle without compromising safety or capacity.
Choose steel for rugged durability or aluminium for maximum maneuverability—both deliver reliability and safety for industrial and construction applications.
Engineered for material handling, scrap metal, and recycling, the PLY-Z polyp grab delivers fast, secure loading with a six-finger profile optimized for high-grip performance. Built to mount on Z-folding truck cranes and loaders, it combines rugged construction with smooth hydraulics for reliable daily use.
Key highlights
- Capacities: 270–320 L (max load upto 2.5–3.0t)
- Clamping force: 1185–1620 daN for strong, consistent grabbing
- Hydraulics: 250–300 bar operating pressure
- Weight: 380–420 kg, balanced for stability and cycle speed
- Design: Six-finger geometry for clean penetration and retention; compact body for tight spaces
- Compatibility: Ideal for Z-folding cranes; quick integration with standard mounts
- Options: Hydraulic rotator + machine attachment; recommended rotators GR 603 DB / GR 104 DB
The PLY-Z is a durable, low-maintenance solution that boosts productivity in sorting yards, transfer stations, and demolition clean-ups.
Purpose-built for handling wood and timber, the BASIC · GRA family combines low weight with high durability for fast, secure loading. With long-lasting bronze bushings and high-elastic-limit blades in Strenx® 700, these grabs keep weight down without sacrificing strength. Compatible with excavators and truck cranes.
Series at a glance
- BASIC – occasional-use grab with a simple, ultra-light design
- GRA-L – lightweight series for maximum agility
- GRA-M – professional closed-finger series for firm holds
- GRA-R – professional open-finger series for quick picking
Key highlights
- Max load range: 1,000–7,000 kg
- Clamping force: 900–2,405 daN
- Operating pressure: 150–250 bar
- Weight: 72–370 kg depending on model
- Working area: 0.16–0.52 m²
- Finger options: open or closed, sized for 1–18-ton carriers
- Design: bronze bushings + Strenx 700 blades for strength with minimal weight
- Options & accessories
- Hydraulic rotator and double swinging link
- Recommended hydraulic rotators: GR 30, GR 30 PF, GR 456, GR 465, GR 603 DB, GR 104 DB, GR 165
The BASIC · GRA series delivers reliable, low-maintenance timber handling—ideal for forestry yards, sawmills, and on-site loading where speed, reach, and control matter.
About I.C.M – The Equipment Specialist – Since 4 February 1984, I.C.M. has been operating in the hydraulics sector with great passion and focused towards innovation. Based in Ravenna, Italy, it manufactures equipment for cranes and earth-moving machinery in-house, starting with carpentry, then welding, painting, and finally the assembly of the finished machines.
